VS4-10 Builders Kit - Straight Axle

PrisNOK5 290,00 inkl. mva.
Klar for sending eller henting 3-4 dager fra bestilling. Sikre deg din idag!
Ønskeliste
EAN-kode:
791512784952
Artikkelnr.:
VPS09022

Produktinfo

TRAIL

DEFINE YOUR OWN PATH

F10 AXLES

SCALE STYLE WITH PERFORMANCE

VFD

VERSITILE AND PROVEN TRANSMISSION

F10 STRAIGHT AXLES

The F10 Straight Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.

Drivetrain

The VS4-10 Builders Kit includes the Vanquish Products VFD transmission and F10 straight axles. The F10 axles feature a high clearance design, minimizing pumpkin size and maximizing strength around the C-hub and knuckle. The ISD10 driveshafts connect the VFD to the F10 axles, featuring machined CV joints and molded splined shafts for smooth, efficient performance.

VS4-10 DRIVETRAIN

VFD TRANSMISSION

The proven VFD transmission is equipped with 6.5% overdrive.  Providing a low and forward motor position with a protective skid plate along the front of the skid plate.

OVERDRIVE TRANSFER CASE

Full ball bearing and metal gears provide strength and longevity for worry free performance.

UNIVERSAL JOINT AXLE SHAFTS

VDI Front axle shafts provide 49° of steering angle.

SECURE BATTERY STORAGE

The versatile battery tray accommodates most batteries, including hard case LiPo and standard stick pack sizes, ensuring a perfect fit for your needs.

VS4-10 Chassis

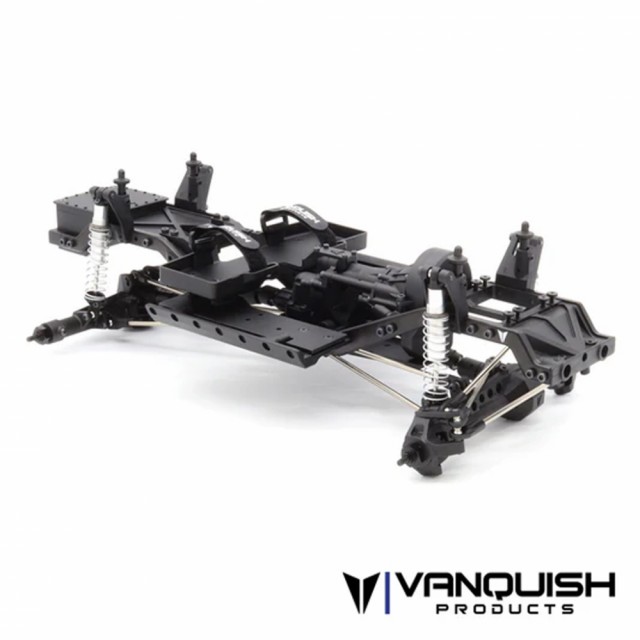

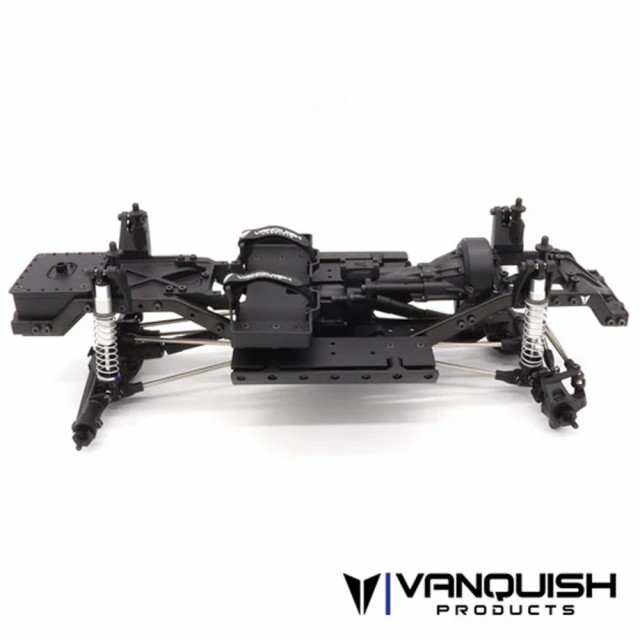

The Vanquish Products VS4-10 Chassis combines scale looks with high performance. Its steel C-channel design offers scale detail and strength, featuring dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders have a replaceable tapered outer portion. The machined aluminum panhard mount withstands severe trail impacts. Molded shock towers secure the 90mm Incision S8E Shocks.

VS4-10 CHASSIS DETAILS

The VS4-10 Chassis brings unmatched rigidity, superior build quality, and a versatile design, making it a popular choice for a wide range of projects.

VFD Transmission

The VFD is designed for optimal performance, scale appearance, strength, and versatile accessories. It positions the motor forward and low for ideal weight distribution. The VFD Spec transmission offers a 6.5% overdrive for improved turning and climbing without stressing electronics. The T-case features replaceable bearing plates for adjustable positioning and optional gear ratios. Compatible with 540 brushed and brushless motors*.

Strength and Tunability

The VFD transmission has wide metal gears inside for strength in the areas that count. The option to build the VFD transmission with a variety of option parts allows you to tune the performance to your needs.

Suspension

The VS4-10 features Incision 90mm S8E shocks with 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension offers scale looks by hiding the servo, while allowing full suspension travel. Stainless steel links ensure low weight and durability.

Strength and Capability

A proven combination of 3-link with panhard front suspension and triangulated rear suspension will allow your custom project to perform as good as it looks. The high clearance chassis and 90mm S8E shocks will give you the flexibility and predictability to conquer the terrain.

1/10th Scale

3.75:1 Axle Gear Ratio

13T Pinion

56T Spur Gear

Wheelbase: 313mm (12.3")

Overall Front Ratio: 47.6:1

Overall Rear Ratio: 50.8:1

Front axle width pin to pin: 182mm (7.17")

Rear axle width pin to pin: 182mm (7.17")
