LED Light Control System for 97054-xx Series

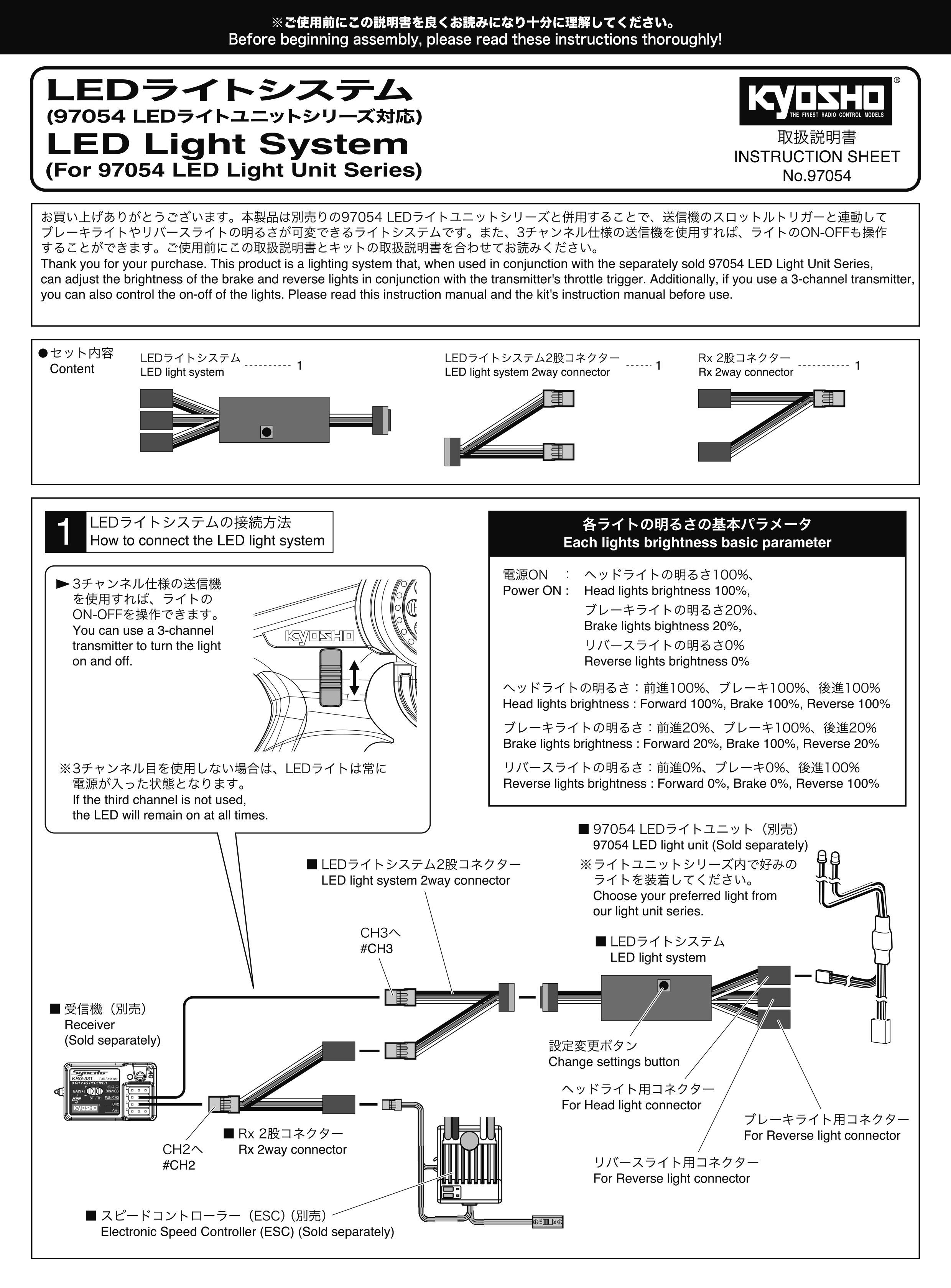

Light controlling system works with the separately sold 97054 LED Light Unit series. When paired, the brightness of the brake lights and reverse lights can be varied in sync with the transmitter’s throttle trigger.
Additionally, if you use a 3-channel transmitter, you can also control the lights’ ON/OFF functions.
By installing it on the Ultra Scale Body or Ultra Scale Body Plus of the FAZER Mk2 or FAZER D2 series, you can achieve an even more realistic scale appearance that closely resembles a real vehicle.

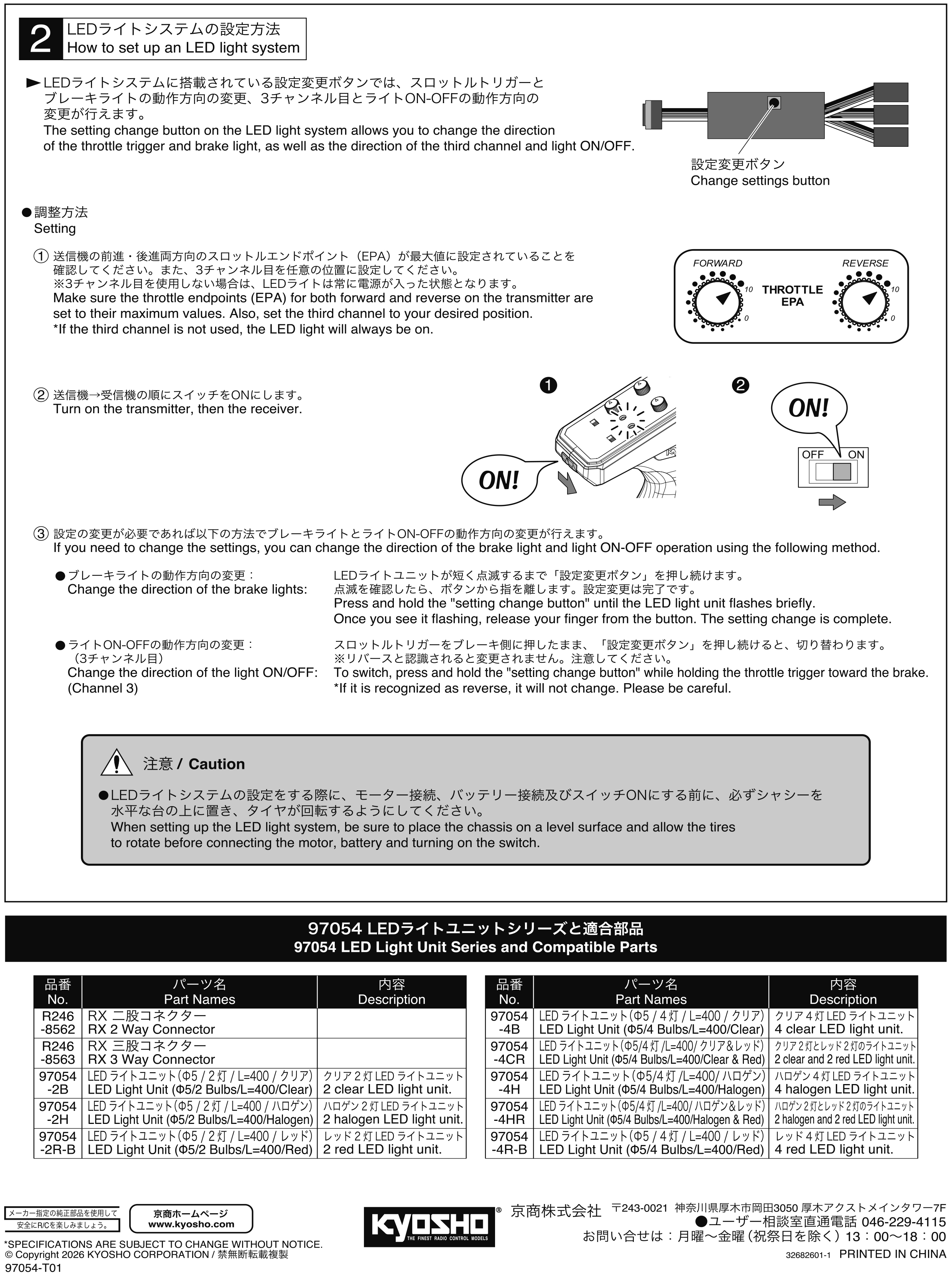

[Important] The headlight connector and brake light connector each support one system only.
For headlights: for 2 LEDs, we recommend 97054-2C/2H; for 4 LEDs, we recommend 97054-4C/4H.
For brake lights: for 2 LEDs, we recommend 97054-2R-B; for 4 LEDs, we recommend 97054-4R-C.

When using with retractable linkage on the AE86, a separate RX Y-connector (No. R246-8562) is required.
